Rotary Drum Dryer Machine For Sawdust NPK Fertilzier
|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||Henan, China|
|Supply Ability:||5 sets per month|
|Port:||Qingdao Port,Tianjin Port,Shanghai Port|
Model No.: 20TPH
General Introduction about Rotary Sawdust Dryer /Biomass Rotary Dryer /Fertilizer Dryer Machine
As the application of the rotary drum dryer is wide, which can be used to dry a lot of materials, so there are some different names according to the material, for example,there are rotary sawdust dryer, fertilzier dryer machine, sand rotary dryer, biomass rotary dryer, coal slime drying machine and so on. however there are
mainly two different structures for the biosmass rotary dryer, one is single pass rotary dryer, and the other is three pass rotary dryer, Mingyuan can provide both of the them for different projects.
rotary sawdust dryer, which can be divided into small sawdust dryer, medium drying machine, and large capacity sawdust drying system, Sawdust Drum Systems has the advantages of large capacity, wide application ranges, small flow resistance, large operation ranges, convenient operation, etc. It is commonly used for drying sand, slag, sludge, coal slime, limestone, quartz stone, granular material, powder material, paste material, Compound Fertilizer, chicken manure and cow dung. in stock there is rotary sawdust dryer for sale.
Our company can provide both single pass rotary drum dryer and triple pass rotary sawdust dryer, both of them can be used for sawdust drying systems, with fuel options
as coal, wood, LPG, diesel, electricity, and so on. According to the heat transfer between the drying medium and wet materials, small sawdust dryer can be divided into direct heat transfer sawdust drying equipment (the direct contact and heat transfer between drying medium and wet materials) and indirect heat transfer sawdust drum dryer (the heat required by the drying process is indirectly passed to the wet materials by the cylinder wall). Indirect heat transfer rotary sawdust dryer is rarely used due to its low transmission efficiency and complex structure, for some materials which is easy to get burned needs to use indirect drying method. The sawdust drying systems is not limited to sawdust, it can also be used to dry wood chips, coal, NPK, etc.Mingyuan can provide different specifications of fertilizer dryer machine.
Working Principle of Rotary Sawdust Dryer /Biomass Rotary Dryer /Fertilizer Dryer Machine

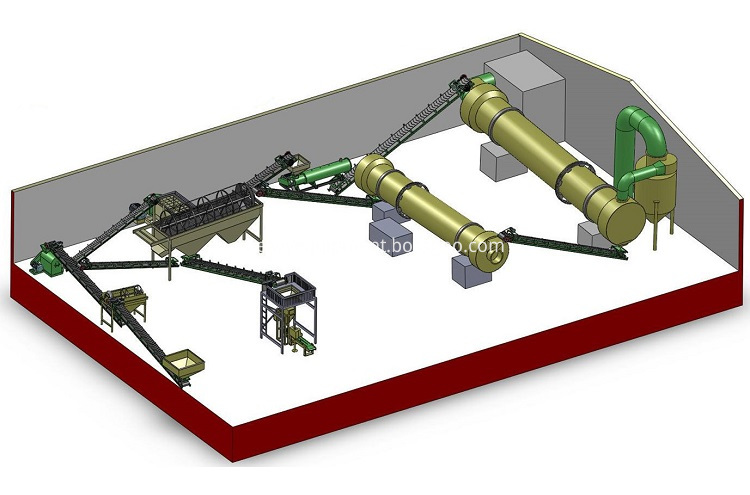

The wet materials are transported into the feeding hopper of the rotary sawdust dryer via belt conveyor or bucket conveyor, and the feeding end of the single drum dryer is higher than the discharge end, so once the mateiral is charged in the dryer, it will flow towards to the discharge end with the rotation of the rotary sawdust dryer, after heat exchange, the moisture of the processed material will be reduced. finally discharged from the sawdust drying systems and transported to the finished product yard. the principle is same for the fertilizer dryer machine and biomass rotary dryer
Along with the revolving of cylinder, the materials move to the lower terminal due to the gravity. When the wet materials move forward, it receives the heat from the heat carrier directly or indirectly. As a result, the wet materials are dried, and discharged out by belt conveyor or screw conveyor on the outlet. There is shoveling plate inside the cylinder in order to shovel materials up and cast it out, to increase the connection surface, to promote drying efficiency, and accelerate the forward movement of materials. Generally, the heat carrier can be hot air and chimney flue. we have different capacities of rotary sawdust dryer for sale.
After the heat carrier is dried, the materials mingled with air should be collected with cyclone dust collector. If there is need to reduce the content of dust mixed with tail gas, the heat carrier should be subject to bag dust collector or wet dust collector before it is discharged.
Features of Rotary Sawdust Dryer /Biomass Rotary Dryer /Fertilizer Dryer Machine1.High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.
3.Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
Specification of Rotary Sawdust Dryer /Biomass Rotary Dryer /Fertilizer Dryer Machine
model drum speed (r/min) Feed water (%) the moisture content (%) capacity (t/h) power (kw) weight (t) 1500*3000 2-7.5 10-25 ≤1 5-8 2.2*2 8 1800*4000 2-7.5 10-25 ≤1 10-15 3*2 13 2000*4500 2-7.5 10-25 ≤1 15-20 4*2 15.8 2000*6000 2-7.5 10-25 ≤1 15-22 5.5*2 20 2200*4500 2-7.5 10-25 ≤1 18-25 5.5*2 18 2200*6000 2-7.5 10-25 ≤1 20-30 7.5*2 22 2500*6500 2-7.5 10-25 ≤1 25-32 11*2 27 2700*7000 2-7.5 10-25 ≤1 25-35 7.5*4 30 3000*7000 2-7.5 10-25 ≤1 30-40 7.5*4 33 3200*7000 2-7.5 10-25 ≤1 40-50 11*4 36 3600*8000 2-7.5 10-25 ≤1 50-70 15*4 50 4200*8500 2-7.5 10-25 ≤1 70-90 18.5*4 70
Company InformationHenan Mingyuan Heavy Industry Machinery Co., LTD is one high-tech enterprise, which involves R&D, manufacturering, sales and service as well. In the past 20 years, we devote ourselves to producing mining equipments such as Sawdust Drum Dryer, jaw crusher, fine crusher, impact crusher hammer mill crusher, vsi sand maker, cone crusher, sand washing machine( both wheel type and spiral), rotary sawdust dryer, biomass rotary dryer, fertilzier dryer machine, ball mill, rotary kiln, cement ball mill, magnetic separator, belt conveyor, shaking table, spiral chute, and so on.
In recently years, we have developped our business in new areas, such as grain dryer, waste material recycling plant for waste tyre, rubber, bottle, and so on. for all equipment we provide we can send our experienced engineer to your workshop to guide the installtion until the whole plant works normally.
Our Service of Rotary Sawdust Dryer /Biomass Rotary Dryer /Fertilizer Dryer Machine According to customers' demand, we supply the services in a flexible way not only the traditional services but also the internet online services. Our engineer is 24 hours online. We try our best to carve out maket and provide services all the time. Before customers purchase, we will send our engineers to customers site to design the best flow chart. After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and efficiency. We welcome customers from home and abroad to visit our company and carry put cooperation!
